6ES7232-4HA30-0XB0

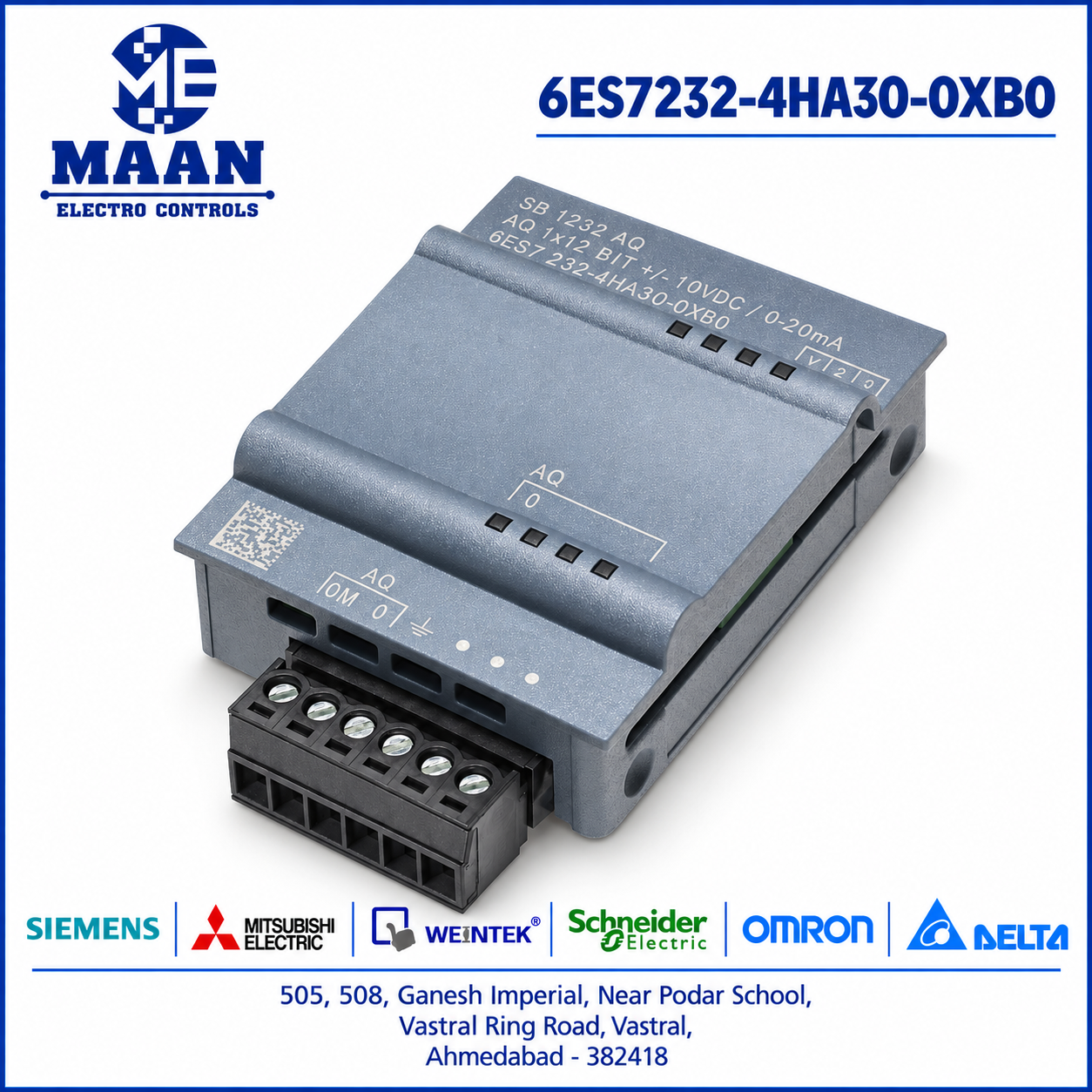

Siemens SIMATIC S7-1200 SB 1232 Analog Output Signal Board – 6ES7232-4HA30-0XB0
The Siemens SB 1232 – 6ES7232-4HA30-0XB0 adds one analog output to a compatible SIMATIC S7-1200 CPU. Supporting ±10 V DC with 12-bit resolution or 0–20 mA with 11-bit resolution, it provides a programmed command signal for compatible drives, actuators, and other equipment accepting the selected analog range.
PRODUCT SPECIFICATIONS
· Brand: Siemens
· Product Family: SIMATIC S7-1200
· Board Model: SB 1232
· Order Number: 6ES7232-4HA30-0XB0
· Product Type: Analog Output Signal Board
· Analog Outputs: 1 AO
· Voltage Output Range: ±10 V DC
· Voltage Resolution: 12 bit
· Current Output Range: 0–20 mA
· Current Resolution: 11 bit
APPLICATIONS
· Drive Speed Reference: Send a command to a compatible drive configured for the selected signal range.
· Valve-Control Setpoint: Provide an analog reference to suitable valve-control equipment.
· Actuator Commands: Supply a programmed value to compatible analog-controlled devices.
· Process Adjustment: Generate a setpoint calculated from operating conditions or measurements available to the CPU.
BENEFITS
· Suits applications requiring a single additional analog output.
· Offers voltage or current signalling to match compatible equipment.
· Connects programmed control decisions with an analog command interface.
· Provides a signal board option for compatible S7-1200 CPU configurations.
