6ES7231-4HA30-0XB0

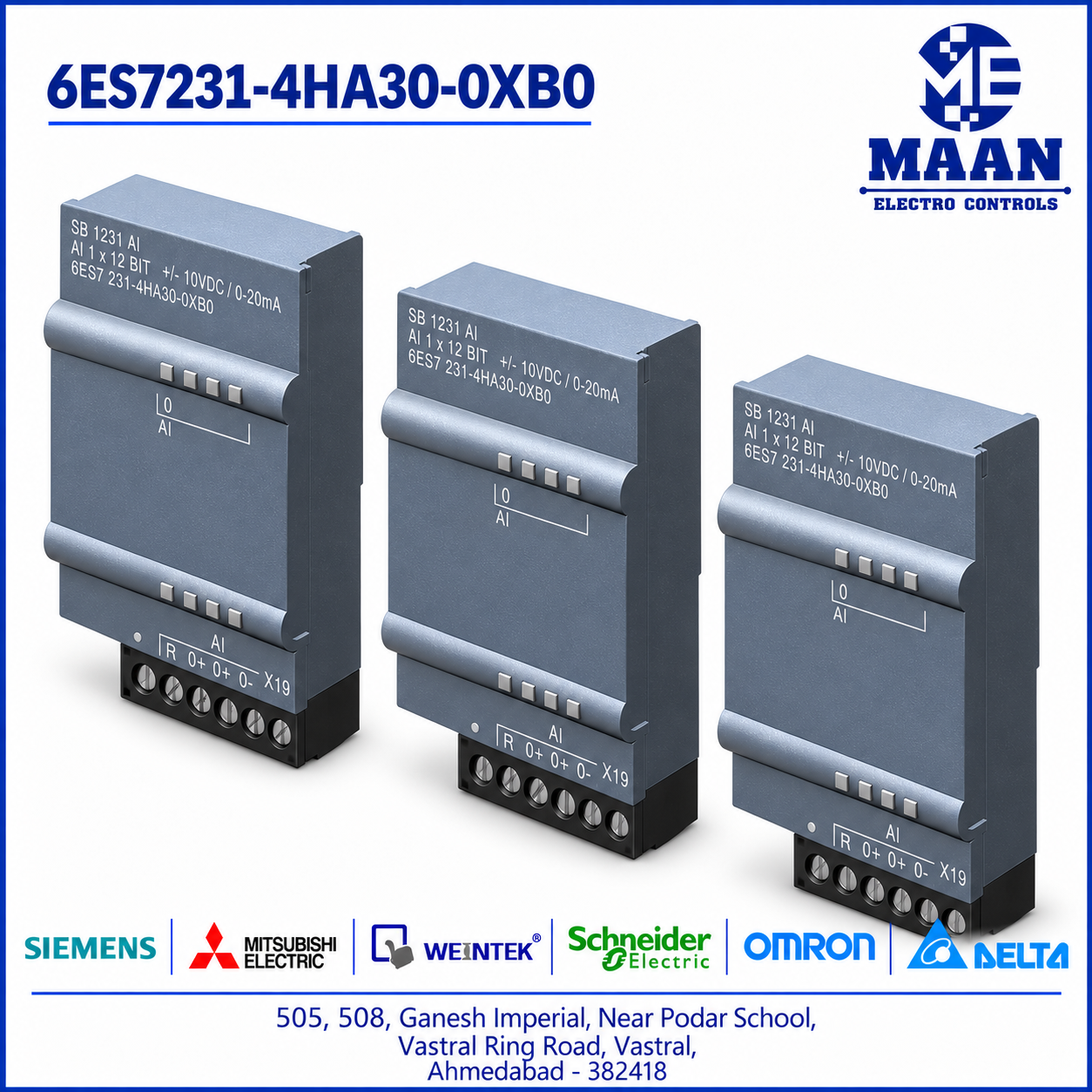

Siemens SIMATIC S7-1200 SB 1231 Analog Input Signal Board – 6ES7231-4HA30-0XB0
The Siemens SB 1231 – 6ES7231-4HA30-0XB0 adds one analog input to a compatible SIMATIC S7-1200 CPU. Supporting ±10 V DC with 12-bit resolution or 0–20 mA signals, this signal board suits applications requiring one additional measurement point for the PLC’s monitoring and control logic.
PRODUCT SPECIFICATIONS
· Brand: Siemens
· Product Family: SIMATIC S7-1200
· Board Model: SB 1231
· Order Number: 6ES7231-4HA30-0XB0
· Product Type: Analog Input Signal Board
· Analog Inputs: 1 AI
· Voltage Input Range: ±10 V DC
· Voltage Resolution: 12 bit
· Current Input Range: 0–20 mA
FEATURES
· One Analog Input: Provides a connection for an additional compatible sensor or transmitter.
· Voltage or Current Selection: Supports the stated signal ranges according to the configured input mode.
· Bipolar Voltage Monitoring: Accepts signals within the specified −10 V to +10 V range.
· PLC Data Acquisition: Makes the measured input value available for processing in the CPU program.
· Signal Board Integration: Adds analog input capability through the compatible CPU’s signal board interface.
BENEFITS FOR COMPACT CONTROL SYSTEMS
· Suits applications needing a single additional analog measurement.
· Offers both ±10 V DC and 0–20 mA input options.
· Allows the measured value to be evaluated alongside existing machine signals.
· Provides a signal board option for compatible S7-1200 CPU configurations.
