6ES7231-4HD32-0XB0

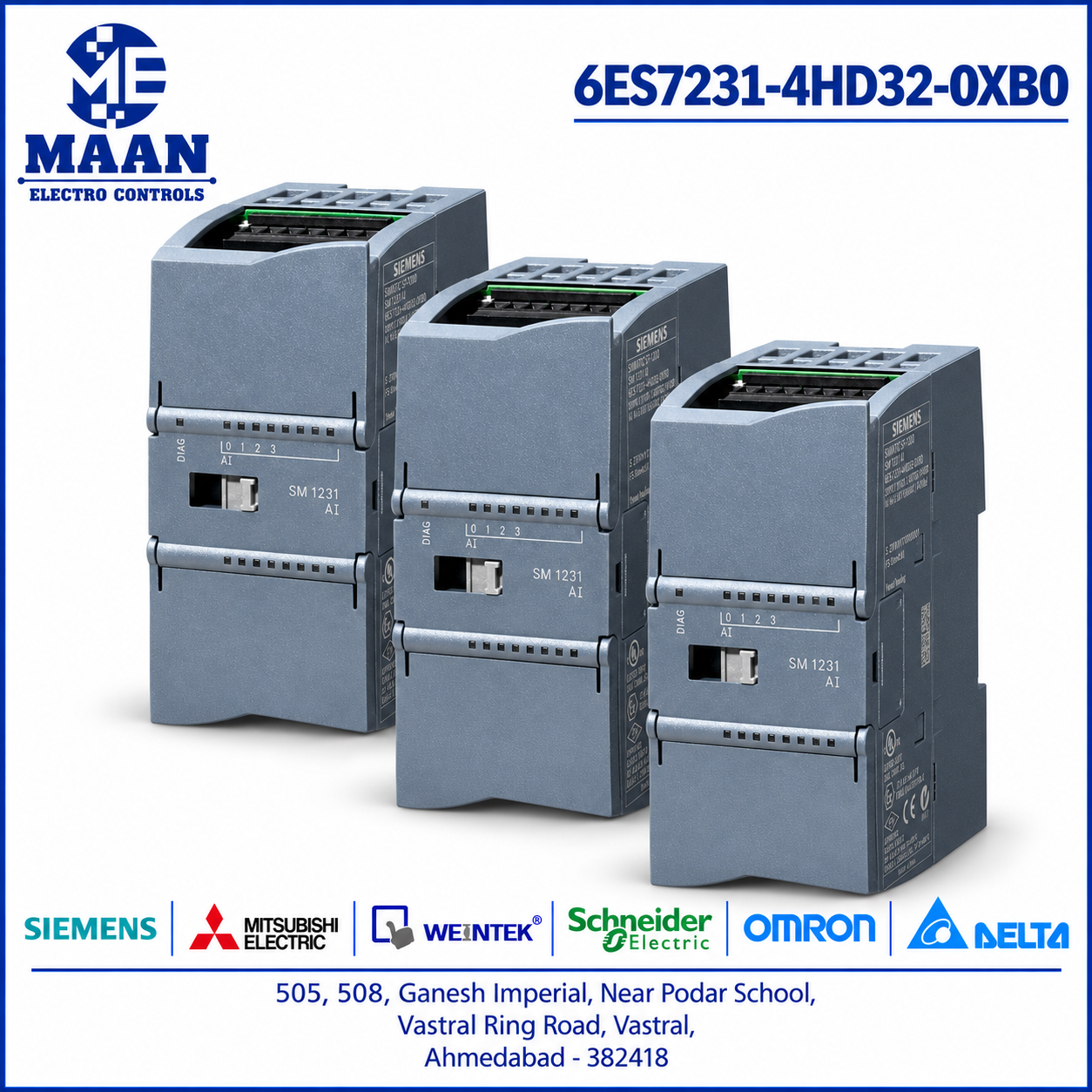

Siemens SIMATIC S7-1200 SM 1231 Analog Input Module – 6ES7231-4HD32-0XB0
The Siemens SM 1231 – 6ES7231-4HD32-0XB0 adds 4 analog input channels to compatible SIMATIC S7-1200 PLC systems. Supporting ±10 V, ±5 V, ±2.5 V, and 0–20 mA/4–20 mA signals, it connects compatible sensors and transmitters to the controller. Its 12-bit plus sign resolution, using a 13-bit ADC, converts incoming analog signals into values for programmed monitoring and control decisions.
PRODUCT SPECIFICATIONS
· Brand: Siemens
· Product Family: SIMATIC S7-1200
· Module Model: SM 1231
· Order Number: 6ES7231-4HD32-0XB0
· Product Type: Analog Input Module
· Analog Inputs: 4 AI
· Voltage Input Ranges: ±10 V, ±5 V, ±2.5 V
· Current Input Ranges: 0–20 mA / 4–20 mA
· Resolution: 12 bit + sign
· Analog-to-Digital Converter: 13-bit ADC
APPLICATIONS
· Pressure Measurement: Read signals from compatible pressure transmitters.
· Level Monitoring: Receive analog values representing tank or vessel levels.
· Flow Measurement: Collect signals from suitable flow transmitters.
· Temperature Monitoring: Connect temperature transmitters providing a supported voltage or current output.
· Threshold-Based Actions: Use measured values in the PLC program to determine alarms or control commands.
BENEFITS FOR AUTOMATION INTEGRATION
· Supports several voltage ranges and two current-signal ranges.
· Brings four measurement points into the controller’s operating logic.
· Allows analog readings to be evaluated alongside other machine conditions.
· Suits upgrades requiring additional process measurements.
