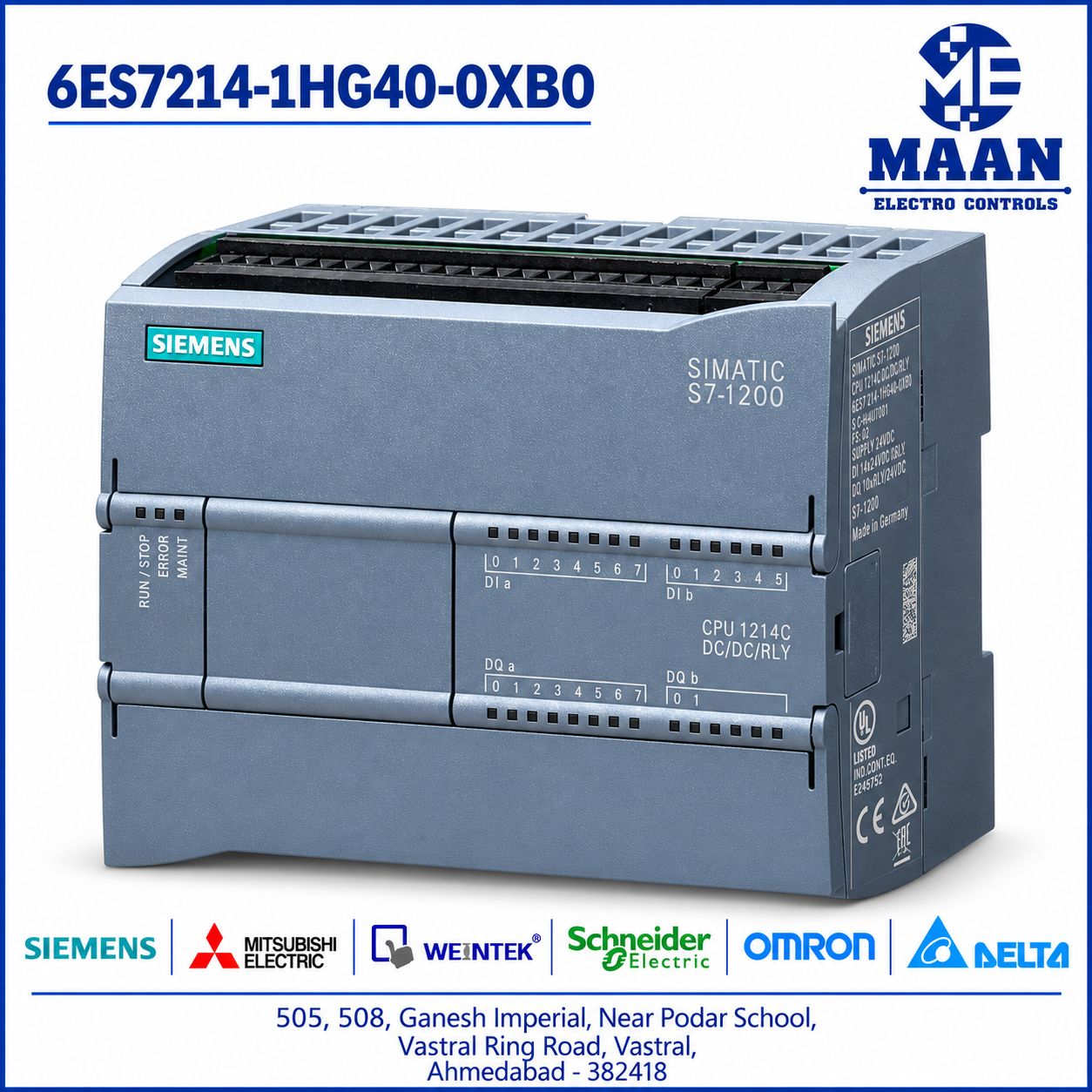

Siemens SIMATIC S7-1200 CPU 1214C Relay Output PLC – 6ES7214-1HG40-0XB0
The Siemens SIMATIC S7-1200 CPU 1214C – 6ES7214-1HG40-0XB0 combines 14 digital inputs, 10 relay outputs rated at 2 A, and 2 analog inputs in a compact DC/DC/relay controller. With 150 KB program/data memory, it supports machines requiring multiple feedback points, analog measurements, and programmed switching of suitable control circuits.
PRODUCT SPECIFICATIONS
· Brand: Siemens
· Product Family: SIMATIC S7-1200
· CPU Model: CPU 1214C Compact CPU
· Order Number: 6ES7214-1HG40-0XB0
· Configuration: DC/DC/Relay
· Digital Inputs: 14 DI, 24 V DC
· Digital Outputs: 10 relay outputs, 2 A
· Analog Inputs: 2 AI, 0–10 V DC
· Power Supply: 20.4–28.8 V DC
· Program/Data Memory: 150 KB
FEATURES
· Relay-Based Switching: Provides ten outputs for operating suitable circuits within the relay contact ratings.
· Digital Feedback Collection: Receives signals from compatible sensors, switches, and equipment-status devices.
· Analog Measurement Monitoring: Accepts two compatible 0–10 V DC signals.
· Programmed Coordination: Uses input conditions and measured values to determine output actions.
· Integrated CPU and I/O: Combines processing and onboard field connections in one unit.
APPLICATIONS
· Material Feeding: Check component availability before activating programmed control functions.
· Assembly Sequences: Use position and detection signals to coordinate operating steps.
· Conveyor Control: Monitor product presence and command suitable connected circuits.
· Measurement-Based Actions: Switch outputs when analog readings meet programmed thresholds.
· Operator Commands and Indication: Read pushbuttons and selectors while controlling compatible status lamps.
BENEFITS
· Provides digital inputs, relay outputs, and analog inputs within a compact controller.
· Supports up to fourteen onboard digital feedback connections and ten relay output connections.
· Offers 150 KB of memory for appropriately sized automation programs and operating data.
· Operates from a suitable DC supply within the specified 20.4–28.8 V range.
