6ES7234-4HE32-0XB0

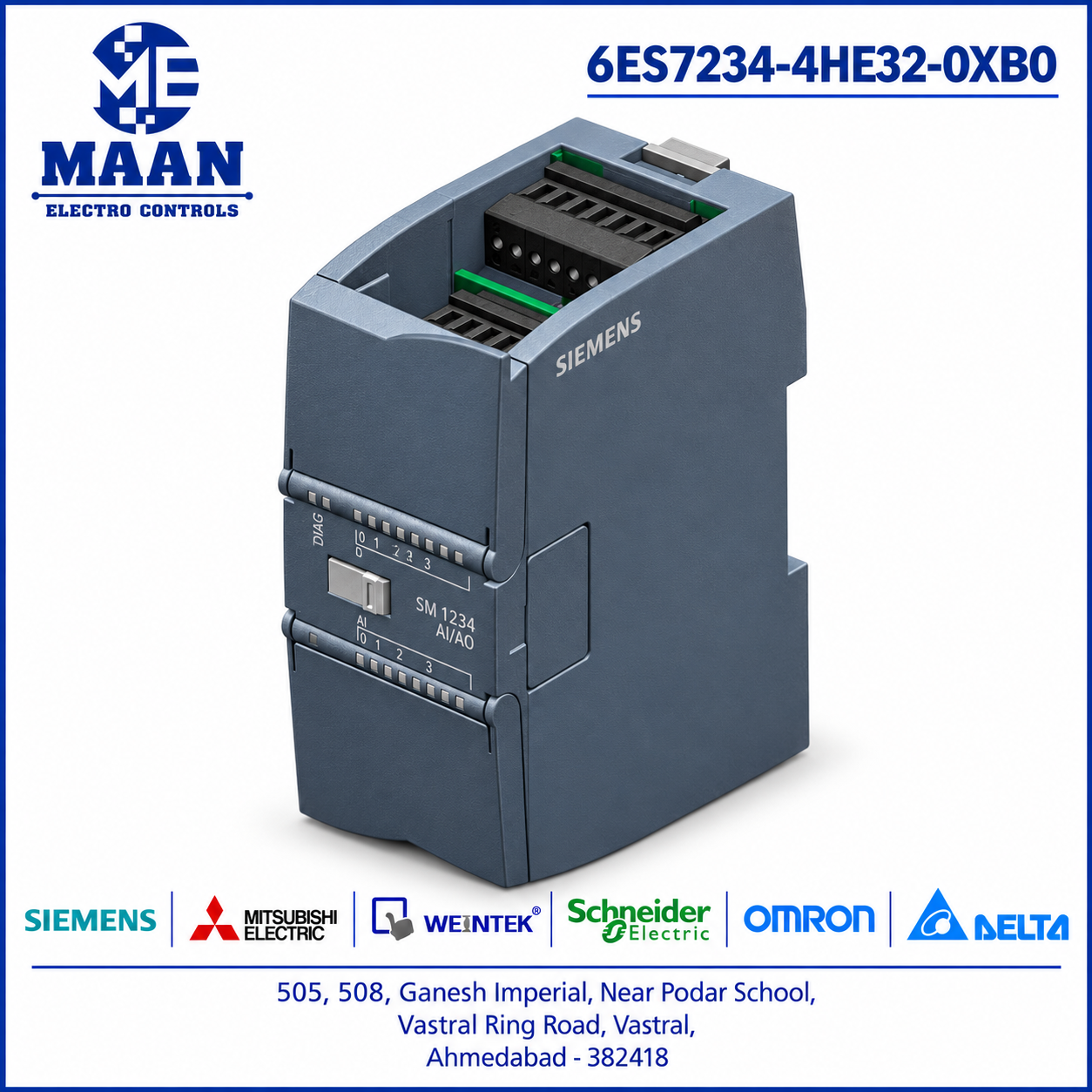

Siemens SIMATIC S7-1200 SM 1234 Analog I/O Module – 6ES7234-4HE32-0XB0
The Siemens SM 1234 – 6ES7234-4HE32-0XB0 combines 4 analog inputs and 2 analog outputs for compatible SIMATIC S7-1200 PLC systems. Supporting ±10 V signals with 14-bit resolution or 0/4–20 mA signals with 13-bit resolution, it connects compatible measurement devices and analog-controlled equipment to the PLC’s programmed logic.
PRODUCT SPECIFICATIONS
· Brand: Siemens
· Product Family: SIMATIC S7-1200
· Module Model: SM 1234
· Order Number: 6ES7234-4HE32-0XB0
· Product Type: Analog Input/Output Module
· I/O Configuration: 4 AI / 2 AO
· Analog Inputs: 4 channels
· Analog Outputs: 2 channels
· Voltage Signal Range: ±10 V
· Voltage Resolution: 14 bit
· Current Signal Range: 0–20 mA / 4–20 mA
· Current Resolution: 13 bit
FEATURES
· Four Measurement Inputs: Receive analog signals from compatible sensors and transmitters.
· Two Analog Outputs: Send programmed setpoints to equipment accepting compatible analog signals.
· Voltage or Current Signals: Support the stated signal options according to channel configuration.
· Combined Analog Expansion: Add measurement acquisition and command outputs through one module.
· PLC-Based Processing: Use measured values within the CPU program to calculate output commands.
APPLICATION
· Process Monitoring: Read compatible transmitter signals representing pressure, level, flow, or other measured conditions.
· Drive Setpoints: Send analog commands to compatible drives configured to accept the selected signal range.
· Valve Position Commands: Provide setpoints to suitable valve-control equipment.
· Measurement-Based Regulation: Combine input readings and output commands within a programmed control routine.
BENEFITS
· Provides analog inputs and outputs in a single expansion module.
· Supports both voltage and current signal interfaces.
· Allows several measured values to participate in the same control program.
· Suits applications requiring feedback monitoring alongside analog setpoint generation.
