6FX3002-5BL03-1CA0

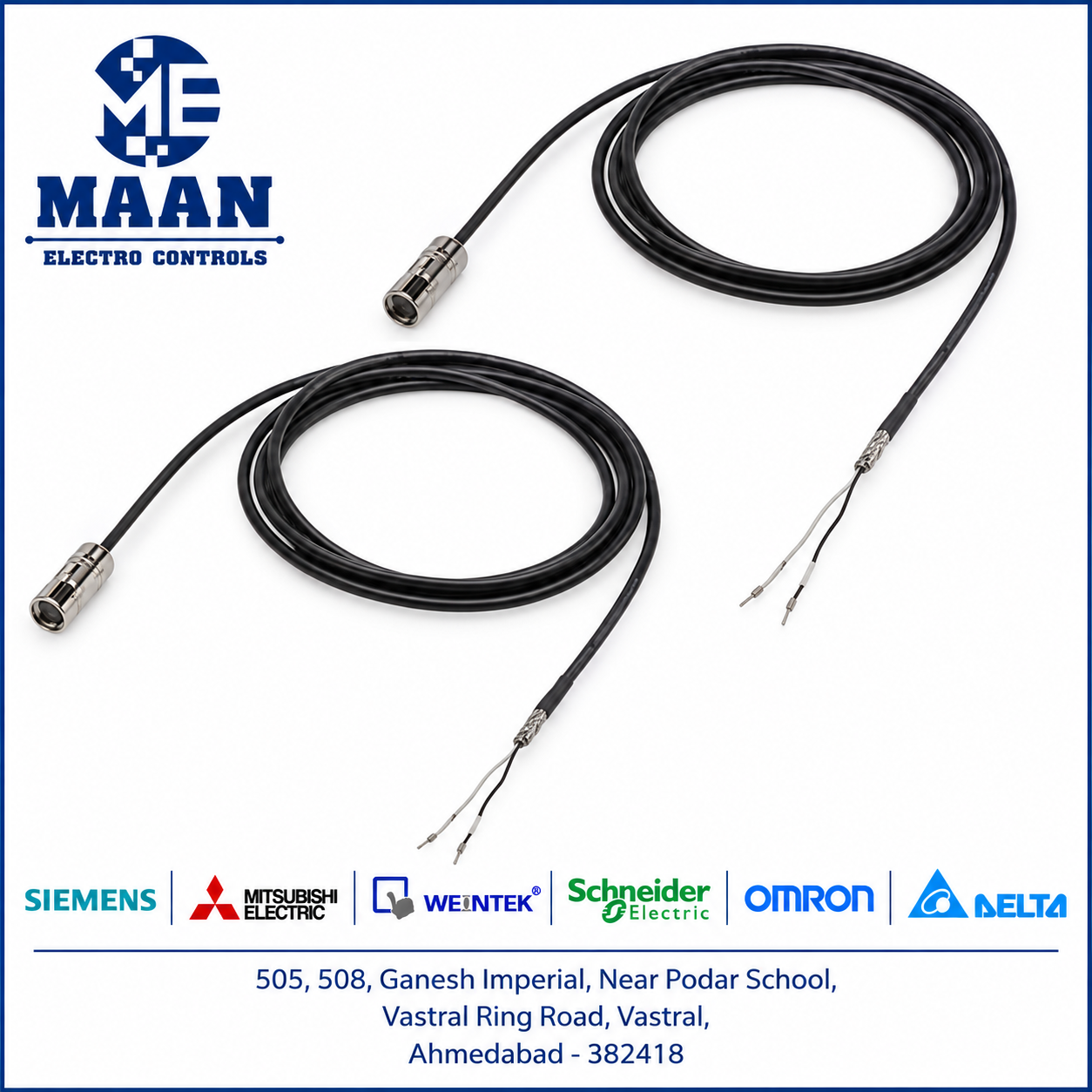

Siemens MOTION-CONNECT 300 20 m Motor Brake Cable – 6FX3002-5BL03-1CA0
The Siemens MOTION-CONNECT 300 – 6FX3002-5BL03-1CA0 is a 20-metre pre-assembled brake cable for compatible SIMOTICS S-1FL6 HI 400 V motors used with SINAMICS V70/V90 systems. With 2 × 0.75 mm² conductors, a straight motor-side connector, and a 6.3 mm maximum diameter, it provides a specified brake-circuit connection for installations with longer routing requirements.
PRODUCT SPECIFICATIONS
· Brand: Siemens
· Product Family: MOTION-CONNECT 300
· Order Number: 6FX3002-5BL03-1CA0
· Product Type: Pre-assembled Motor Brake Cable
· Conductor Configuration: 2 × 0.75 mm²
· Motor Compatibility: SIMOTICS S-1FL6 HI 400 V
· System Compatibility: SINAMICS V70/V90
· Cable Length: 20 m
· Maximum Cable Diameter: 6.3 mm
· Motor-Side Connector: Straight
· UL Approval: No UL approval
FEATURES
· 20-Metre Connection Length: Accommodates longer cable paths within the equipment’s permitted installation limits.
· Pre-assembled Construction: Reduces onsite preparation of the matching motor-side brake connection.
· Two-Conductor Arrangement: Provides two conductors with a cross-section of 0.75 mm² each.
· Straight Motor Connection: Suits layouts requiring a straight connector at the motor.
· Defined Outer Diameter: Helps plan cable passages using the specified 6.3 mm maximum diameter.
BENEFITS
· Offers a fixed-length brake cable option where the motor is positioned farther from the brake-control equipment.
· Supports routing plans with known cable length, conductor size, and diameter.
· Simplifies replacement identification through the exact Siemens order number.
· Provides a dedicated cable choice for the stated compatible motor and system combination.
INTEGRATION
· Match the cable to the compatible S-1FL6 HI motor’s brake interface.
· Confirm the brake-control equipment’s requirements for the 20-metre cable run.
· Include bends and connection allowances when measuring the complete route.
· Allow suitable clearance for the straight motor-side connector.
· Select for applications where UL approval is not required.
